風力發電機
風力發電機
ALXION STK永磁無框發電機(Permanent Magnet frameless alternators)解決了風力發電機需要無齒輪
直接驅動以符合成本效益及在低功率 / 中功率需要極高的功率重量比(power-to-weight ratio)的需求。
特點:

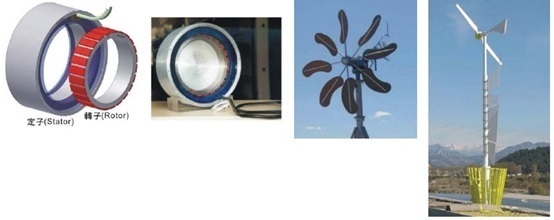

･STK發電機包含一個定子與一個動子，客戶可自行按機構需求組裝。
･額定轉速(Rated Speed)自80RPM至1500RPM。
･額定功率(Rated Power)自200W至99KW(取決於尺寸及額定轉速)。
･六種直徑尺寸:自145mm至795mm(內徑自56mm至630mm)。
･額定轉速和額定負載的標準額定電壓230V。
･優異的功率重量比(power-to-weight ratio):高達600W/Kg。
･優異的功率體積比(power-to-volume):高達2500W/dm3
･不需倍增轉速、不需齒輪機構。
･高可靠度與使用壽命(MTBF高達10萬小時)。
･直接驅動具有極高的功率重量比。
･即使在低轉速仍具有高效率(部分型號高達94%效率)。
･具極低的磁性摩擦(magnetic friction)及齒槽轉矩(cogging torque)，故在很低的風力
下即可使STK發電機轉動(只需1%額定轉矩即可轉動發電機)。
･簡化機構設計。
･最佳的成本效益。
･此發電機亦可應用水力發電或洋流發電。
|
|

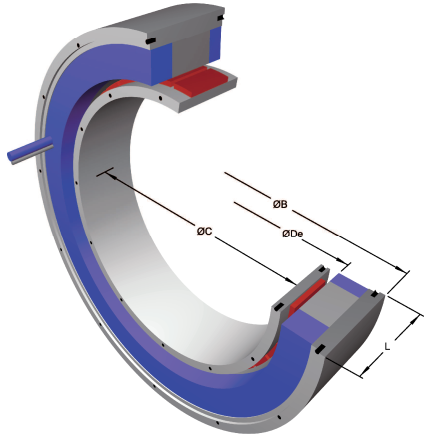

Stator's Overall |
Rotor's Internal |
Stator's Internal |
Stator's Length |
Max speed |
Continuous |
Maximum Torque |
|
Ø B (mm) |
Ø C (mm) |
Ø De (mm) |
L (mm) |
rpm |
N.m |
N.m |
|
|
145STK 1M |
Ø145 / Ø153 |
Ø56 max. |
Ø78,5 |
92,00 |
1500 |
8 / 15 |
27 |
|
145STK 2M |
119,00 |
14,6 / 29,9 |
55 |
||||
|
145STK 3M |
146,00 |
21 / 45 |
82 |
||||
|
145STK 4M |
173,00 |
24,4 / 59,8 |
110 |
||||
|
145STK 5M |
200,00 |
32 / 75 |
137 |
||||
|
145STK 6M |
227,00 |
37,3 / 90 |
165 |
||||
|
145STK 7M |
254,00 |
42 / 105 |
192 |
||||
|
145STK 8M |
281,00 |
47,4 / 120 |
220 |
||||
|
190STK 1M |
Ø190 / Ø193 |
Ø72 max. |
Ø98 |
103,75 |
1500 |
20 / 35 |
59 |
|
190STK 2M |
140,00 |
36 / 71,4 |
119 |
||||
|
190STK 3M |
176,25 |
50 / 106 |
178 |
||||
|
190STK 4M |
212,50 |
63 / 141 |
238 |
||||
|
190STK 5M |
248,75 |
1000 |
77 / 176 |
297 |
|||
|
190STK 6M |
285,00 |
89 / 210 |
357 |
||||
|
190STK 7M |
321,25 |
101 / 242 |
416 |
||||
|
190STK 8M |
357,50 |
111 / 274 |
476 |
||||
|
300STK 1M |
Ø303 / Ø303 |
Ø190 max |
Ø228 |
87,50 |
800 |
55 / 118 |
193 |
|
300STK 2M |
115,00 |
98 / 235 |
387 |
||||
|
300STK 3M |
142,50 |
136 / 345 |
580 |
||||
|
300STK 4M |
170,00 |
170 / 453 |
774 |
||||
|
300STK 5M |
197,50 |
205 / 566 |
967 |
||||
|
300STK 6M |
225,00 |
235 / 679 |
1161 |
||||
|
300STK 7M |
252,50 |
268 / 794 |
1354 |
||||
|
300STK 8M |
280,00 |
295 / 910 |
1548 |
||||
|
400STK 1M |
Ø404 / Ø404 |
Ø258 max. |
Ø306 |
100,50 |
800 |
125 / 263 |
440 |
|
400STK 2M |
128,00 |
225 / 525 |
880 |
||||
|
400STK 3M |
155,50 |
318 / 792 |
1320 |
||||
|
400STK 4M |
183,00 |
400 / 1059 |
1760 |
||||
|
400STK 5M |
210,50 |
480 / 1307 |
2200 |
||||
|
400STK 6M |
238,00 |
550 / 1554 |
2640 |
||||
|
400STK 7M |
265,50 |
200 |
630 / 1816 |
3080 |
|||
|
400STK 8M |
293,00 |
700 / 2077 |
3520 |
||||
|
500STK 1M |
Ø502 / Ø502 |
Ø350 max. |
Ø403 |
93,00 |
600 |
210 / 412 |
768 |
|
500STK 2M |
120,50 |
365 / 819 |
1536 |
||||
|
500STK 3M |
148,00 |
520 / 1180 |
2304 |
||||
|
500STK 4M |
170,50 |
640 / 1550 |
3072 |
||||
|
500STK 5M |
203,00 |
50 |
759 / 1972 |
3840 |
|||
|
500STK 6M |
230,50 |
878 / 2394 |
4608 |
||||
|
500STK 7M |
258,00 |
985 / 2793 |
5376 |
||||
|
500STK 8M |
285,50 |
1087 / 3192 |
6144 |
||||
|
500STK 9M |
313,00 |
1185 / 3590 |
6912 |
||||
|
800STK 1M |
Ø795 / Ø795 |
Ø630 max. |
Ø688 |
112,50 |
250 |
610 / 1039 |
1828 |
|
800STK 2M |
140,00 |
1127 / 2057 |
3656 |
||||
|
800STK 3M |
167,50 |
1620 / 3100 |
5484 |
||||
|
800STK 4M |
195,00 |
2010 / 4100 |
7312 |
||||
|
800STK 5M |
222,50 |
2359 / 5100 |
9140 |
||||
|
800STK 6M |
250,00 |
30 |
2708 / 6100 |
10968 |
Note: Values in blue are for fluid cooled motors (windings at 140°C)
STK直驅馬達的功率轉速曲線(以型號 800STK 為例)

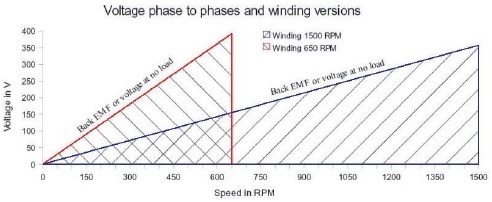

STK 直驅馬達的電壓轉速曲線:

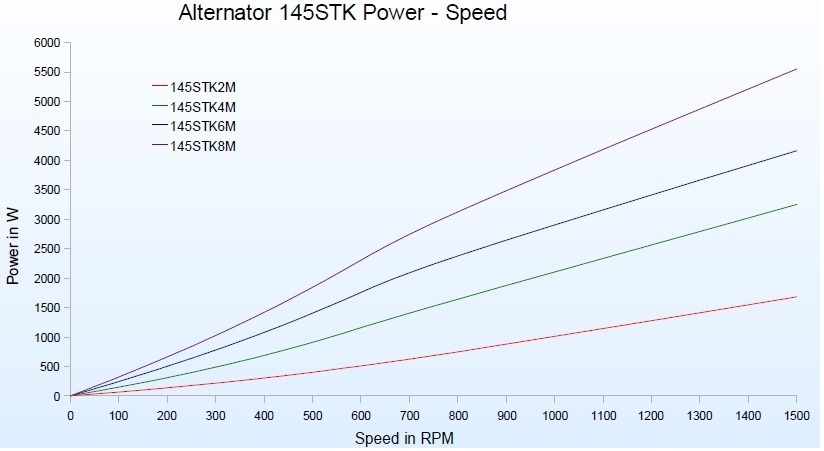

STK直驅馬達的功率轉速曲線 (型號 145STK)
(1) Ambient temperature 40°C
Wind speed 10 m/s
Winding temperature rise < 100°C
Stator housing in contact w ith the ambient air or integral on all its peripheral area w ith a metallic armature in contact w ith the ambient air
Stator housing secured on a metallic f rame getting an area equal to tw ice the cross section of the housing
(2) Operation w ith unitary pow er factor
(3) Single phase voltage; rated voltage is 230Vac phase to phase. Voltage level may be adapted according to the application
(4) Single phase voltage, Alternator at no load, rated speed and at 20°C; multiply by √3 (≈1.732) for phase to phase voltage at no load.
(5) For current at rated pow er
(6) For curents low er than 53 Amps, one cable
For curents over 53 Amps, four single w ires output (highlighted in the table)

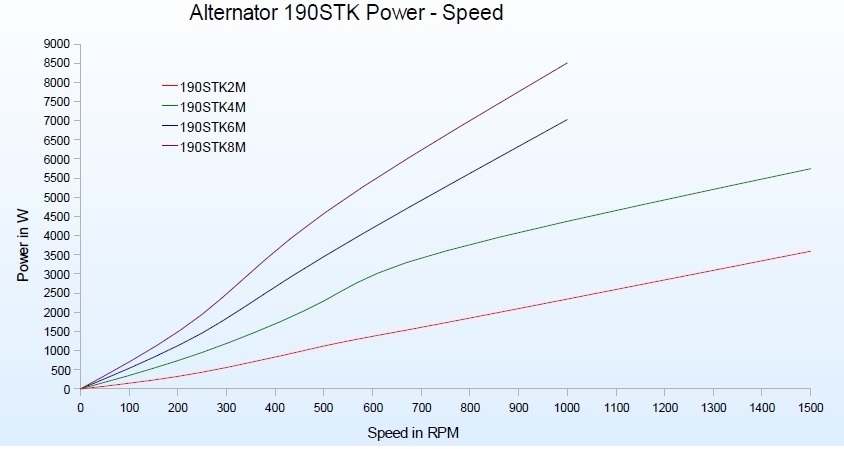

STK直驅馬達的功率轉速曲線 (型號 190STK)
(1) Ambient temperature 40°C
Wind speed 10 m/s
Winding temperature rise < 100°C
Stator housing in contact w ith the ambient air or integral on all its peripheral area w ith a metallic armature in contact w ith the ambient air
Stator housing secured on a metallic f rame getting an area equal to tw ice the cross section of the housing
(2) Operation w ith unitary pow er factor
(3) Single phase voltage; rated voltage is 230Vac phase to phase. Voltage level may be adapted according to the application
(4) Single phase voltage, Alternator at no load, rated speed and at 20°C; multiply by √3 (≈1.732) for phase to phase voltage at no load.
(5) For current at rated pow er
(6) For curents low er than 53 Amps, one cable
For curents over 53 Amps, four single w ires output (highlighted in the table)

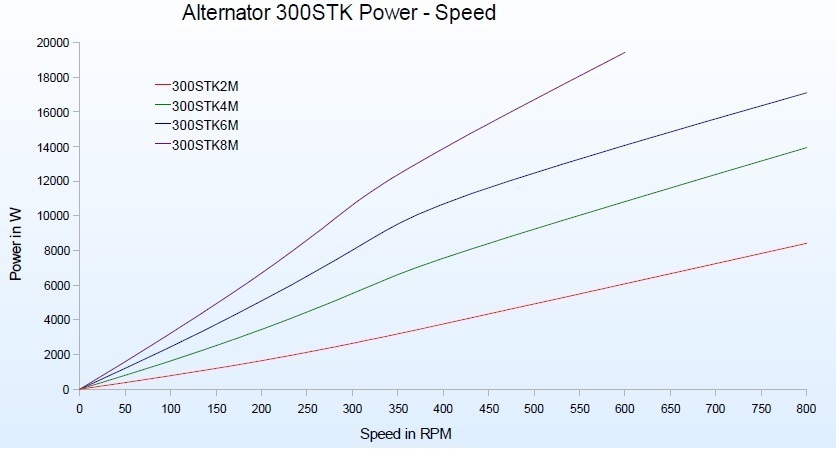

STK直驅馬達的功率轉速曲線 (型號 300STK)
(1) Ambient temperature 40°C
Wind speed 10 m/s
Winding temperature rise < 100°C
Stator housing in contact w ith the ambient air or integral on all its peripheral area w ith a metallic armature in contact w ith the ambient air
Stator housing secured on a metallic f rame getting an area equal to tw ice the cross section of the housing
(2) Operation w ith unitary pow er factor
(3) Single phase voltage; rated voltage is 230Vac phase to phase. Voltage level may be adapted according to the application
(4) Single phase voltage, Alternator at no load, rated speed and at 20°C; multiply by √3 (≈1.732) for phase to phase voltage at no load.
(5) For current at rated pow er
(6) For curents low er than 53 Amps, one cable
For curents over 53 Amps, four single w ires output (highlighted in the table)

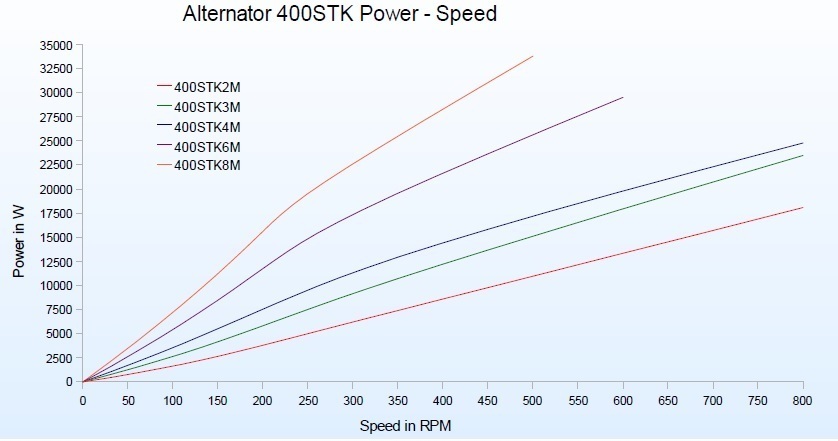

STK直驅馬達的功率轉速曲線 (型號 400STK)
(1) Ambient temperature 40°C
Wind speed 10 m/s
Winding temperature rise < 100°C
Stator housing in contact w ith the ambient air or integral on all its peripheral area w ith a metallic armature in contact w ith the ambient air
Stator housing secured on a metallic f rame getting an area equal to tw ice the cross section of the housing
(2) Operation w ith unitary pow er factor
(3) Single phase voltage; rated voltage is 230Vac phase to phase. Voltage level may be adapted according to the application
(4) Single phase voltage, Alternator at no load, rated speed and at 20°C; multiply by √3 (≈1.732) for phase to phase voltage at no load.
(5) For current at rated pow er
(6) For curents low er than 53 Amps, one cable
For curents over 53 Amps, four single w ires output (highlighted in the table)

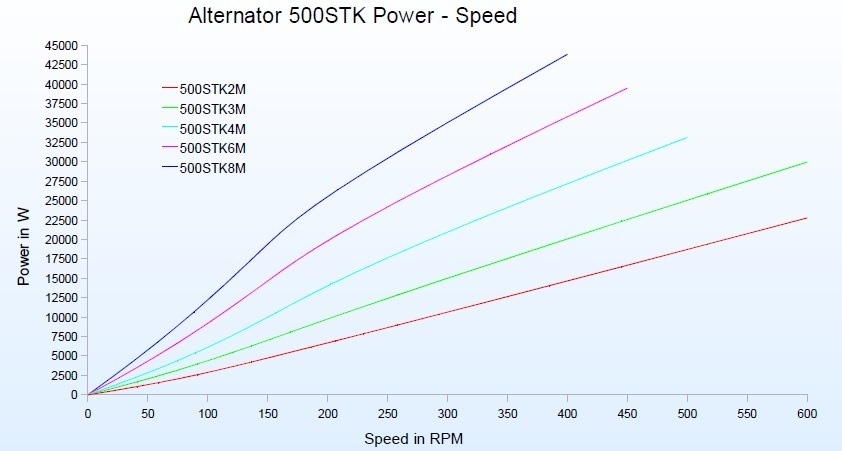

STK直驅馬達的功率轉速曲線 (型號 500STK)
(1) Ambient temperature 40°C
Wind speed 10 m/s
Winding temperature rise < 100°C
Stator housing in contact w ith the ambient air or integral on all its peripheral area w ith a metallic armature in contact w ith the ambient air
Stator housing secured on a metallic f rame getting an area equal to tw ice the cross section of the housing
(2) Operation w ith unitary pow er factor
(3) Single phase voltage; rated voltage is 230Vac phase to phase. Voltage level may be adapted according to the application
(4) Single phase voltage, Alternator at no load, rated speed and at 20°C; multiply by √3 (≈1.732) for phase to phase voltage at no load.
(5) For current at rated pow er
(6) For curents low er than 53 Amps, one cable
For curents over 53 Amps, four single w ires output (highlighted in the table)
原廠資料下載網址: http://www.alxion.com/products/stk-alternators/
