ASM 拉線式 / 磁性尺Encoder
拉線式位置感測器 (POSIWIRE®)
原廠網址: https://www.asm-sensor.com/en/posiwire-wegseil-sensoren.html
 |
儀器設備用 量測：up to 1,000mm 輸出：電位器,4..20mA, 防護：IP50 |
 |
工業設備用(長距離) 量測：up to 15,000 mm 輸出：電位器, 10V, 4..20mA SSI, CANopen 防護：IP66 |
 |
工業設備用(長距離) 量測：up to 40,000mm 輸出：電位器, 10V,4..20mA, 增量型, SSI, bus 防護：IP52 |
 |
工業設備用(超長距離) 量測：up to 60,000mm 輸出：增量型, SSI, Parallel Bus systems 防護：IP52 (適用起重系統) |
 |
工業設備用(體積小、防塵) 量測：up to 3,000mm 輸出：電位器, 10V, 4..20mA, 防護：IP67, Dust-Ex protection Cat. 3 , Zone 22 |
 |
離岸/極惡劣環境用 量測：up to 10,000mm 輸出：電位器, 10V, 4..20mA 防護：IP68 / IP69 |
鋼帶式位置感測器(POSITAPE®)
原廠網址: https://www.asm-sensor.com/en/positape-wegband-sensoren.html
 |
WB10ZG Tape Ext. Position Senso 工業設備用(小體積) 量測：up to 20,000mm 輸出：0.5-4.5V/ 10V, 4..20mA,SSI, CANopen |
 |
WB61 Tape Ext. Position Sensor 工業設備用 量測：up to 4,000mm 輸出：0.5-4.5V/ 10V, 4..20mA, SSI, CANopen 防護：IP67 / IP68 |
 |
WB21 Tape Ext. Position Sensor 工業設備用 量測：up to 20,000mm 輸出：0.5-4.5V/ 10V, 4..20mA, SSI, CANopen 防護：IP67 / IP69 |
 |
WB100M Tape-extension position sensor 離岸/惡劣環境用 量測：up to 10,000mm 輸出：0.5-4,5V/10V, 4..20 mA, SSI, CAN 防護：IP68 / IP69 |
Magnetostrictive位置感測器(POSICHRON®)
原廠網址: https://www.asm-sensor.com/en/posichron-magnetostriktive-sensoren.html
 |
PCQA22 Position Sensor 工業設備用 量測：0~100 to 0~5,750mm 輸出：0.5~10V, 4..20mA, SSI,CAN 防護：IP64 |
 |
PCFP23 Position Sensor 工業設備用(扁平型) 量測：0~100 to 0~5,750mm 輸出：0.5~10V, 4..20mA, SSI,CAN 防護：IP64 |
 |
PCST25 Position Sensor 工業設備用 量測：0~100 to 0~5,750mm 輸出：0.5~10V, 4..20mA, SSI,CAN 防護：IP69K |
 |
PCRP32 Position Sensor 工業設備用 量測：0~100 to 0~5,750mm 輸出：0.5~10V, 4..20mA, SSI 防護：IP67 / 69K, IP68 |
磁性尺(POSIMAG®)
原廠網址: https://www.asm-sensor.com/en/posimag-magnetband-sensoren.html
 |
PMIS3 Magnetic Scale Sensor 工業設備用 類別：增量型 解析：up to 1µm 輸出：A / B / Z, Reference, Limit 防護：IP67 |
 |
PMIB3 Magnetic Scale 工業設備用 安裝：自黏膠帶 輸出：A / B / Z, Reference, Limit |
原廠成功案例
|
機械 |
||
|
注塑機
非接觸式測量原理，在注塑機定位POSICHRON®傳感器是一種理想的替代線性電位器，帶有塗層。 |
印刷設備
印刷機位置檢測連續檢測調節輥和使用ASM位置傳感器定位紙堆高度的實際位置值。 |
電廠設備
電廠運行的蒸汽管道，透過位置傳感器WS安全監控。 |
|
車輛檢測 |
||
|
ICE機箱測試
對在開發階段的ICE機箱測試，以優化駕駛安全性和舒適性，或以確保運行安全作為常規維護的一部分。 |
交通運輸起重機
獲取WS位置傳感器運輸起重機吊臂當前位置。 |
汽車的底盤測試
汽車底盤測試作為用於驅動安全性和舒適，車輪懸架的振動經由計算機， |
|
輸送機技術 |
||
|
無人運輸系統
使用WS定位傳感器，定位無人運輸系統，例如高度定位。 |
叉車，貨架管理設備
對叉車的提升高度的連續拍攝，揀選設備和貨架管理設備與電纜觸動位置傳感器，包括高達60米的提升高度。 |
交通運輸起重機
獲取WS位置傳感器運輸起重機吊臂當前位置。 |
|
起重設備 |
||
|
升降平台、剪式升降台
記錄升降平台、剪式升降台限制開關或接近傳感器末端位置。 |
動力升降器˴重型起重架
在重型起重架測量不斷提升高度上的所有液壓缸同步運行的監測，毫米精確的升降橋樑等。 |
龍門起重機
使用位置傳感器定位龍門起重機。 |
|
醫療設備 |
||
|
診察台
用於病人的定位操作診斷或治療。 |
手術台
使用WS位置傳感器進行各種外科手術手術台可靠和準確的定位。 |
斷層掃描，乳房X光檢查
在醫療診斷設備精準定位病人，如電腦輔助斷層掃描設備或乳房X光檢查。 |
|
研究與試驗 |
||
|
飛機結構測試
對整個飛機結構結構試驗，疲勞試驗和仿真的通過液壓缸極端情況，記錄使用WS位置傳感器變形行為的性能。 |
ICE機箱測試
對在開發階段的ICE機箱測試，以優化駕駛安全性和舒適性，或以確保運行安全作為常規維護的一部分。 |
汽車的底盤測試
汽車底盤測試作為用於驅動安全性和舒適，車輪懸架的振動經由計算機， |
TOP
( 一 ) Displacement Sensors 位移感測器
1. posiwire® Cable Extension Sensors
| WS31 / WS42 Cable Extension Position Sensors | |
 |
Measurement length up to 1,000 mm Protection class IP50 With precision potentiometer or optical encoder |
| WS10SG Cable Extension Position Sensor |
|
 |
Measurement length up to 2,000 mm Protection class IP56 Optional magnetic absolute encoder |
| WS10ZG Cable Extension Position Sensor |
|
 |
Measurement length up to 2,000 mm Protection class IP56 Optional magnetic absolute encoder |
| WS10 Cable Extension Position Sensor |
|
 |
Measurement length up to 2,000 mm Protection class IP56 Optional magnetic absolute encoder |
| WS12 Cable Extension Position Sensor |
|
 |
Measurement length up to 3,000 mm Protection class IP56 Optional magnetic absolute encoder Optional redundant version |
| WS17KT Cable Extension Position Sensor |
|
 |
Measurement length up to 15,000 mm Protection class up to IP66 With precision potentiometer Optional integrated brake |
| WS19KT Cable Extension Position Sensor |
|
 |
Measurement length up to 15,000 mm Protection class IP64 With optical encoder Optional integrated brake |
| WS19KK Cable Extension Position Sensor |
|
 |
Measurement length up to 15,000 mm Protection class IP64 With optical encoder Optional integrated brake |
| WS61 Cable Extension Position Sensor |
|
 |
Measurement length up to 3,000 mm Protection class IP67 With magnetic absolute encoder Optional redundant version |
| WST61 Cable Extension Position Sensor with integrated Inclination Sensor |
|
 |
Measurement ranges up to 3,000 mm / up to ± 180º Protection class IP67 With magnetic absolute encoder With inclination sensor in MEMS technology Redundant version available |
| WS85 Cable Extension Position Sensor |
|
 |
Measurement length up to 6,000 mm Protection class IP67 Magnetic absolute encoder Optional redundant version |
| WST85 Cable Extension Position Sensor with integrated Inclination Sensor |
|
 |
Measurement ranges up to 6,000 mm / up to ± 180º Protection class IP67 Magnetic absolute encoder Inclination sensor in MEMS technology Optional redundant version |
| WS21 Cable Extension Position Sensor |
|
 |
Measurement length up to 20,000 mm Protection class IP67 With magnetic absolute encoder Optional redundant version |
| WST21 Cable Extension Position Sensor with integrated Inclination Sensor |
|
 |
Measurement ranges up to 20,000 mm / up to ± 180º Protection class IP67 With magnetic absolute encoder With inclination sensor in MEMS technology Redundant version available |
| WS7.5 Cable Extension Position Sensor |
|
 |
Measurement length up to 40,000 mm Protection class IP52 Optional magnetic optical encoder Optional redundant version |
| WS60 Cable Extension Position Sensor |
|
 |
Measurement length up to 40,000 mm Protection class IP52 With optical or incremental encoder Optional redundant version |
| WS100M Cable Extension Position Sensor |
|
 |
Measurement length up to 10,000 mm for underwater applications Protection class IP68/IP69 Optional magnetic optical encoder Optional redundant version |
| WS58C Cable Extension Position Sensor |
|
 |
Measurement length up to 2,500 mm Protection class IP64 With optical encoder |
| WS10EX Cable Extension Position Sensor - Dust-Ex-Proof |
|
 |
Measurement length up to 1,250 mm, explosion protected Protection class IP65 With explosion protection (dust-EX) |
| WS12EX Cable Extension Position Sensor - Dust-Ex-Proof |
|
 |
Measurement length up to 3,000 mm, explosion protected Protection class IP65 With explosion protection (dust-EX) |
| LR19 Linear to Rotation Sensor |
|
 |
Sensor mechanism for incremental and absolute encoders Protection class depends on encoder Measurement ranges up to 15,000 mm Synchro and clamping flange assembly |
| WS7.0 Cable Extension Position Sensor |
|
 |
Open sensor for large measurement ranges Discontinued model Measurement ranges: up to 40,000 mm Incremental, SSI, bus systems Sensor mechanism available separately |
| WS2.1 Cable Extension Position Sensor |
|
 |
Sensor for medium measurement ranges Discontinued model Measurement ranges: up to 2,500 mm Replaced by WS17KT Not to use in new projects |
| WGS2 Velocity Sensor |
|
 |
Position and velocity sensor Discontinued model / only for replacement Measurement ranges: up to 2,500 mm Velocity: 0.01 mm/s - 10 m/s Potentiometer, 10 V, 4...20 mA, tacho, T5 |
| WGS3 Velocity Sensor |
|
 |
Position and velocity sensor Discontinued model / only for replacement Measurement ranges: up to 7,500 mm Velocity: 0.01 mm/s - 10 m/s Potentiometer, 10 V, 4...20 mA, tacho, T5 |
| WGS3.1 Velocity Sensor |
|
 |
Position and velocity sensor Discontinued model / only for replacement Measurement ranges: up to 15,000 mm Speed: 0.01 mm/s - 10 m/s Potentiometer, 10 V, 4...20 mA, tacho, T5 |
| WS1.1 Cable Extension Position Sensor |
|
 |
Sensor for small measurement ranges Discontinued model Measurement ranges: up to 1,250 mm Replaced by WS10 and WS10SG Not to use in new projects |
| WS1.2 Cable Extension Position Sensor |
|
 |
Sensor for small measurement ranges Discontinued model Measurement ranges: up to 1,250 mm Replaced by WS10 and WS10SG Not to use in new projects |
| WS11 Cable Extension Position Sensor |
|
 |
Sensor for medium measurement ranges Discontinued model Measurement ranges: up to 5,000 mm Replaced by WS19KT/KK, WS58 Not to use in new projects |
TOP
2. positape® Tape Extension Sensors
| WB10ZG Tape Extension Position Sensor | |
 |
Measurement length up to 2,000 mm Protection class IP65 |
| WB12 Tape Extension Position Sensor |
|
 |
Measurement length up to 4,000 mm Protection class up to IP67/69 Optional redundant version |
| WB61 Tape Extension Position Sensor |
|
 |
Measurement length up to 4,000 mm Protection class up to IP67/69 Optional redundant version |
| WBT61 Tape Extension Position Sensor with integrated Inclination Sensor |
|
 |
Measurement ranges up to 4,000 mm / ±180º Protection class up to IP67/69 With inclination sensor in MEMS technology Optional redundant version |
| WB85 Tape Extension Position Sensor |
|
 |
Measurement length up to 6,000 mm Protection class up to IP67/69 Optional redundant version |
| WBT85 Tape Extension Position Sensor with integrated Inclination Sensor |
|
 |
Measurement ranges up to 6,000 mm / ±180º Protection class up to IP67/69 With inclination sensor in MEMS technology Optional redundant version |
| WB21 Tape Extension Position Sensor |
|
 |
Measurement length up to 20,000 mm Protection class up to IP67/69 Optional redundant version |
| WBT21 Tape Extension Position Sensor with integrated Inclination Sensor |
|
 |
Measurement ranges up to 20,000 mm / ±180º Protection class up to IP67/69 With inclination sensor in MEMS technology Optional redundant version |
| WB100M Tape Extension Position Sensor |
|
 |
Measurement length up to 10,000 mm for offshore applications Protection class up to IP68/69 Optional redundant version |
TOP
3. posichron® Magnetostrictive Sensors
| PCFP23 Magnetostrictive Position Sensor | |
 |
Flat profile for tight mounting spaces Protection class IP64 |
| PCFP24 Magnetostrictive Position Sensor |
|
 |
Flat profile for tight mounting spaces Protection class IP67/69 |
| PCFP25 Magnetostrictive Position Sensor |
|
 |
Ultra flat profile for tight mounting spaces Protection class IP64 |
| PCQA22 Magnetostrictive Position Sensor |
|
 |
Square profile for standard industrial applications Protection class IP64 |
| PCQA24 Magnetostrictive Position Sensor |
|
 |
Square profile for standard industrial applications Protection class up to IP67/IP69 |
| PCRP21 Magnetostrictive Position Sensor |
|
 |
Round profile for standard industrial applications Protection class IP64 |
| PCST24 Magnetostrictive Position Sensor |
|
 |
Rod-style sensor for hydraulic cylinders, level indicators Protection class up to IP67/IP69 |
| PCST25 Magnetostrictive Position Sensor |
|
 |
Rod-style sensor for hydraulic cylinders, level indicators Protection class up to IP67/IP69 |
| PCST27 Magnetostrictive Position Sensor |
|
 |
Rod-style sensor for underwater applications, hydraulic cylinders, level indicators Protection class IP68/IP69 |
| PCRP32 Magnetostrictive Position Sensor |
|
 |
Round profile for underwater applications Protection class IP68/IP69 |
TOP

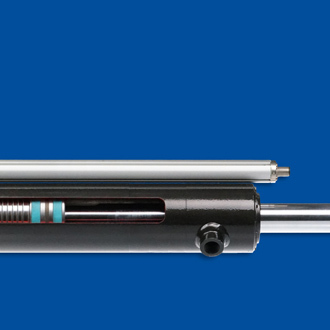

4. posichron® EasyMount Magnetostrictive Sensors
| posichron® EasyMount Magnetostrictive Sensors | |
 |
posichron® EasyMount is a new sensor solution for hydraulic cylinders. Core part of the new concept is a strong position magnet mounted inside the hydraulic cylinder. The sensor itself originates from the magnetostrictive, non-contact and wear-free posichron® sensor line. Contrary to the conventional internal mounting, it is mounted on the outside of the hydraulic cylinder and is therefore easily accessible for maintenance and repair work. Advantages • Easy sensor installation due to external mounting • No deep hole drilling necessary • Easy maintenance and repair • Redundant sensor assembly possible (up to 4-fold) • Measuring lengths up to 5,750 mm • Installation in synchronous cylinder possible |
5. posimag® lin Magnetic Scale Sensors
| PMIS3 Magnetic Scale Position Sensor | |
 |
Ultra-compact, contactless sensor head Resolution up to 1 µm Protection class IP67 Reference and end-position switches |
| PMIB3 Magnetic Scale |
|
 |
Magnetic measuring scale suitable for sensor PMIS3 Simple stick-on assembly Resistant to humidity Reference and end-position switches |
TOP
( 二 ) Angle Sensors 角度感測器
1. posirot® Magnetic Angle Sensors
| PRAS20 Magnetic Angle Sensor | |
 |
Absolute magnetic angle sensor up to 360 degrees in a flat housing Contactless with external position magnet Only 6 mm thickness Protection class IP60 |
| PRAS21 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor up to 360 degrees in a flat housing Contactless with external position magnet Only 6 mm thickness Protection class IP60 |
| PRAS26 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor up to 360 degrees in a flat housing Contactless with external position magnet Only 9.5 mm thickness Protection class IP60 |
| PRAS27 / PRDS27 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor up to 360 degrees Contactless with external position magnet Protection class IP67 |
| PRAS29 / PRDS29 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor up to 360 degrees Contactless with external position magnet Protection class up to IP69 |
| PRAS1 / PRDS1 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor up to 360 degrees in a M12 housing Contactless with external position magnet Protection class IP67/IP69 |
| PRAS2 / PRDS2 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor up to 360 degrees in a flat housing of 36 mm diameter Contactless with external position magnet Protection class up to IP67/IP69 |
| PRAS3 / PRDS3 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor up to 360 degrees, 36 mm diameter With 10 mm shaft or 6 mm hollow shaft Protection class IP67 |
| PRAS4 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor 0 to 360° for underwater applications Contactless with external position magnet Protection class IP68 (10 bar), continuous use |
| PRAS5 / PRDS5 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor 0 to 360° in a flat housing With 10 mm shaft or contactless Protection class up to IP67/IP69, IP68 as option |
| PRAS6 / PRDS6 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor 0 to 360° in a flat housing Contactless with external position magnet Protection class up to IP67 IP69 |
| PRAS7 / PRDS7 Magnetic Angle Sensor |
|
 |
Absolute magnetic angle sensor 0 to 360° in a flat housing Contactless with external position magnet Protection class up to IP67/IP69 |
| PRAS2EX Magnetic Angle Sensor - Dust-Ex-Proof |
|
 |
Dust-Ex proof angle sensor 0 to 360° in a 36 mm diameter flat housing Contactless with external position magnet Protection class IP65 |
| PRAS3EX Magnetic Angle Sensor - Dust-Ex-Proof |
|
 |
Dust-Ex proof angle sensor 0 to 360° in a 36 mm diameter housing With 10 mm shaft or 6 mm hollow shaft Protection class IP65 |
| PRAS5EX Magnetic Angle Sensor - Dust-Ex-Proof |
|
 |
Dust-Ex proof angle sensor 0 to 360° in a flat housing With 10 mm shaft or contactless Protection class IP65 |
TOP
2. posimag® rot Magnetic Incremental Encoders
| PMIS4/PMIR7/PMIR7N Magnetic Incremental Encoder | |
 |
Incremental encoder for rotative applications consisting of sensor head PMIS4 and magnetic ring PMIR7/PMIR7N All metal housing Large guiding distance Up to 184,320 pulses / 360° |
| PMIS4/PMIR5 Magnetic Incremental Encoder |
|
 |
Incremental encoder for rotative applications consisting of sensor head PMIS4 and magnetic ring PMIR5 All metal housing Large guiding distance Up to 327,680 pulses / 360° |
| PMIS4/PMIR4 Magnetic Incremental Encoder |
|
 |
Incremental encoder for rotative applications consisting of sensor head PMIS4 and magnetic ring PMIR4 Replaced by PMIS4/PMIR7N Up to 184,320 pulses / 360° |
TOP
3. posihall® Magnetic Multiturn Encoders
| PH36 Magnetic Multiturn Encoder | |
 |
Encoder with measurement range up to 31 revolutions Housing diameter 36 mm Protection class up to IP67/IP69 |
| PH58 Magnetic Multiturn Encoder |
|
 |
Encoder with measurement range up to 255 revolutions Housing diameter 58 mm Protection class up to IP67/IP69 Optional redundant version |
| PH68 Magnetic Multiturn Encoder |
|
 |
Encoder with measurement range up to 255 revolutions Housing diameter 68 mm Protection class up to IP67/IP69 Optional redundant version |
4. posirot® Potentiometric AWS
| AWS1 Angle Sensor | |
 |
Analogue angle sensor with servo-flange Measurement ranges: 345° / 180° / 90° Potentiometer, 0...10 V, 4...20 mA Protection class: up to IP67 |
| AWS2 Angle Sensor |
|
 |
Analogue angle sensor with square flange Measurement ranges: 345° / 180° / 90° Potentiometer, 0...10 V, 4...20 mA Protection class: up to IP67 |
TOP
( 三 ) Inclination Sensors 傾角感測器
1. positilt® Inclination Sensors
| PTM27 Inclination Sensor | |
 |
High accuracy inclination sensor Measurement range up to ±180° Single or dual axis measurement Resolution up to 0.001° Robust, compact plastic housing Protection class IP67 |
| PTM29 Inclination Sensor |
|
 |
High accuracy inclination sensor Measurement range up to ±180° Single or dual axis measurement Resolution up to 0.001° Robust, compact stainless steel housing Protection class up to IP69 |
| PTAM2 / PTDM2 Inclination Sensor |
|
 |
Robust aluminum housing Measurement range up to ±180° Single or dual axis measurement Protection class IP67/IP69 Servo flange mounting |
| PTAM4 Inclination Sensor |
|
 |
For underwater applications Measurement range up to ±180° Single or dual axis measurement Protection class IP68 (10 bar), continuous use |
| PTAM5 / PTDM5 Inclination Sensor |
|
 |
Robust stainless steel housing Measurement range up to ±180° Single or dual axis measurement Protection class IP67/IP69, IP68 optional |
| PTAM6 / PTDM6 Inclination Sensor |
|
 |
Robust stainless steel housing Measurement range up to ±180° Single or dual axis measurement Protection class IP67/IP69 |
| PTAM7 / PTDM7 Inclination Sensor |
|
 |
Robust stainless steel housing, also for hygienic applications Measurement range up to ±180° Single or dual axis measurement Protection class IP67/IP69 |
| PTAM27 / PTDM27 Inclination Sensor |
|
 |
Robust plastic housing Measurement range up to ±180° Single or dual axis measurement Protection class IP67 |
2. positilt® PTK Gyro-compensated Inclination Sensors
| PTK29 Gyro-compensated Inclination Sensor | |
 |
Robust, compact stainless steel housing Measurement range up to ±180° with 1 axis, ±60° with 2 axes Protection class IP67 Wear-free MEMS technology |
| PTK6 Gyro-compensated Inclination Sensor |
|
 |
Robust stainless steel housing Measurement range up to ±180° with 1 axis, ±60° with 2 axes Protection class IP67/IP69 Wear-free MEMS technology |
| PTK7 Gyro-compensated Inclination Sensor |
|
 |
Robust stainless steel housing, also for hygienic applications Measurement range up to ±180° with 1 axis, ±60° with 2 axes Protection class IP67/IP69 Wear-free MEMS technology |
TOP
( 四 ) Other Products 其它產品
| Stop Time Measurement 停機時間量測系統 | |
 |
Stop Time Measuring Instrument for safety measurements at power driven machines such as presses, shears and robots. The system is used to calculate the distance of the safety device acc. to EN ISO 13855. (2-hand control, light curtain ..) |
| Process Displays |
|
 |
Digital process displays in Panel or desktop version, fully scaleable, fast incremental input, analogue input for 0-10V, 0/4-20mA and potentiometers Switched outputs, RS232 connection |
